How works

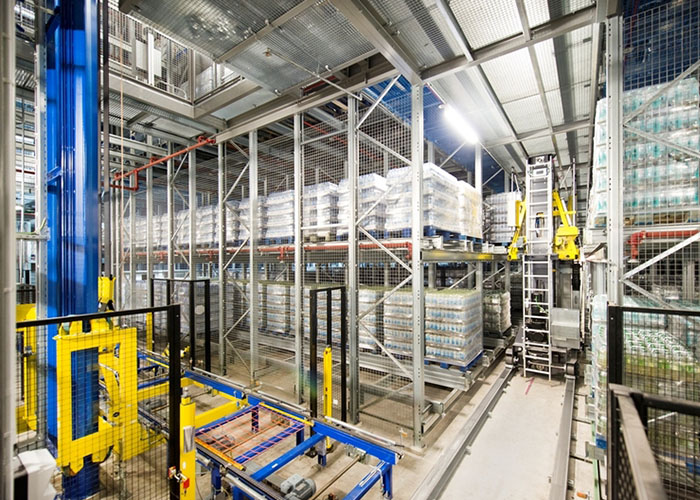

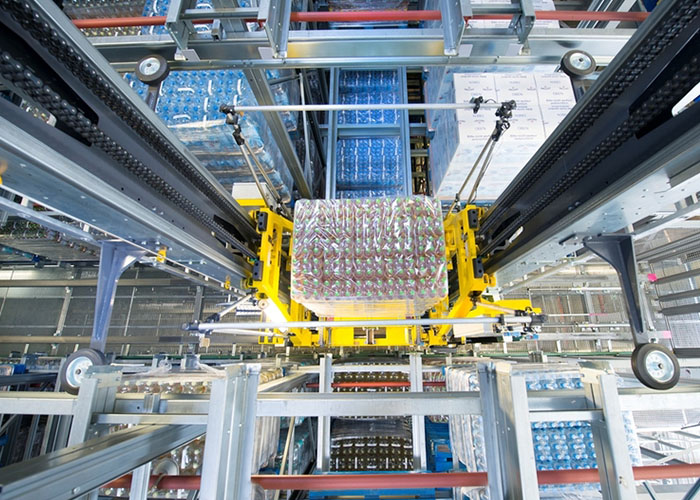

Since it runs on two rails, it doesn‘t require any upper guide rails. It is also possible to use many such devices on top of each other in order to scale the SLR to customer-specific requirements. When stacked, the feed-in and retrieval of the pallets is done via vertical lifts. The SLR and lifts work together to form a system where the storage capacity can be effectively heightened and the efficiency of the logistic solution can be increased.

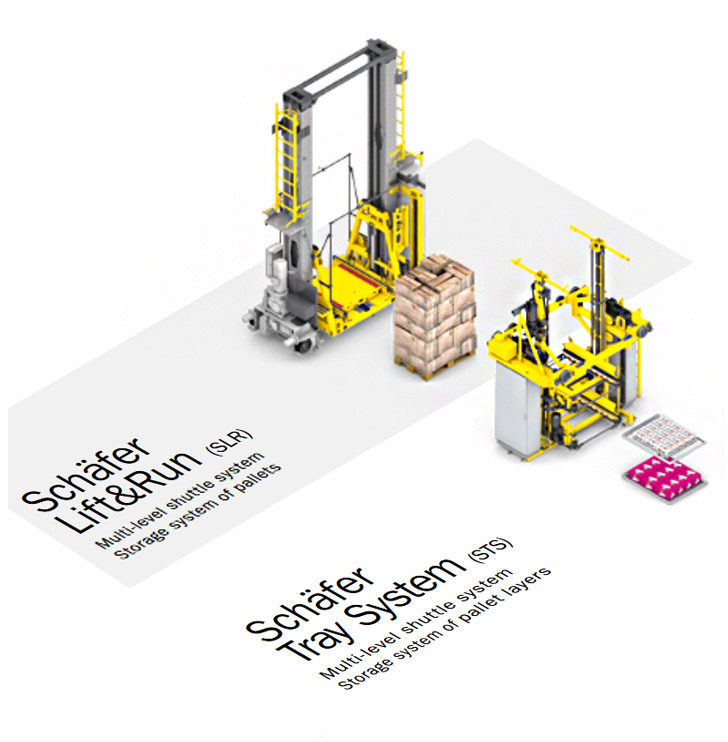

The Schaefer Lift&Run System applies the logistics matrix principle in pallet handling. Thanks to high dynamics, small space requirements and efficient use of energy, it is an interesting alternative to the common pallet SRM for many applications.

Advantages

• Low weight
• Energy-efficient drives
• Economic design of lift drive with multiple levels
• Lifting carriage with flexible Orbiter channel vehicle, especially suitable for the beverage sector
• High machine safety thanks to integrated hydraulics buffer for lifting movements
• Hydraulic buffer for travel
• Seperated PFT levels for storage and retrieval possible
• Modular principle, compact and scalable

How works

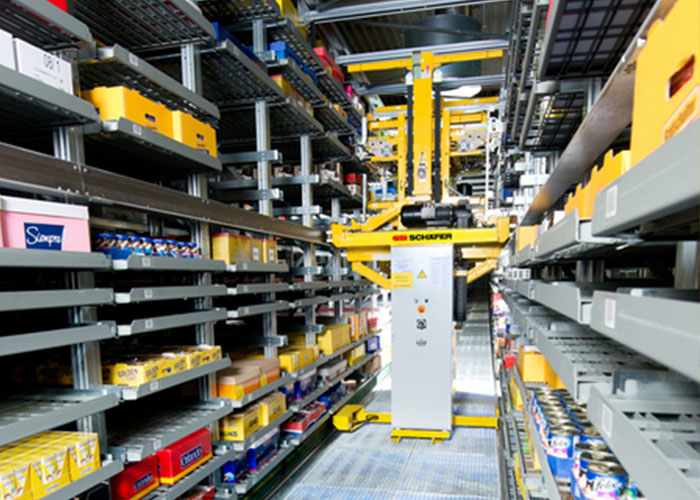

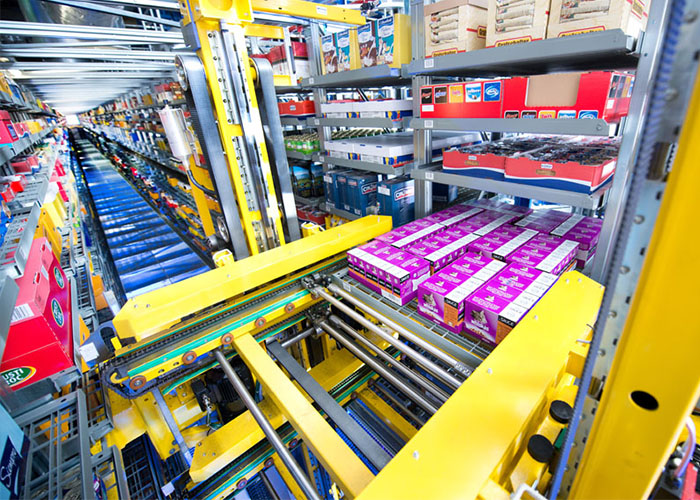

The Schaefer Tray System (STS) is a system for storage and picking of complete pallet loads on trays. With multiple STS vehicles on top of each other, the warehouse can be efficiently used. Each STS vehicle has two load handling devices with a pulling jig installed.
As a result there are ver y short cycles and minimum requirements for empty space in the racks. The trays are typically supplied via STS lifts to transfer places in the rack.
Based on a strategic alignment of the single components, this storage system allows for highly dynamic, highly available, and efficient use as well as very high throughputs. The rack vehicle is delivered in a stable transport aid made of steel which ensures a safe transport and facilitates the installation of the STS vehicle in the rack.

Advantages

• Highest dynamic by relinquishing telescope movements
• Modular and scalable system, optimal use of space
• Flexible use of up to 6 levels on top of each other
• High throughput per formance by use of transfer stations
• Additional sorting (sequencing) via lifts possible
• Rail and conductor line already integrated in rack construction

SSI SCHAEFER provides ideas, concepts and holistic solutions for complex logistics management. Being a systems supplier with international know-how and a global presence, SSI SCHAEFER is your competent partner. With engineering ser vices, mechanical engineering, steel construction and control engineering from one source, as well as our own IT and software development department, harmonious interaction is guaranteed.
Automatic Storage and Retrieval Machines by SSI SCHAEFER are an important part of a cost-effective logistics chain. Anywhere optimized warehousing with quick transport of material and short access times is required, we offer innovative Storage and Retrieval Machines that meet customer requirements and reduce warehousing costs.
Our in-house manufacturing guarantees unchanging quality and reliability.
