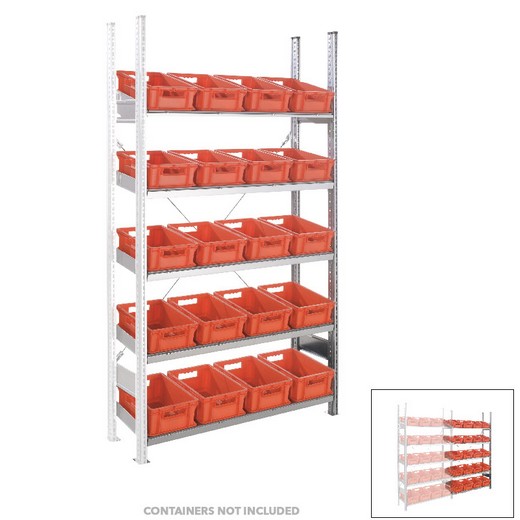

R3000 Gravity Add-on 5 Levels 85"H x 50"W x 64"D

Looking for: R3000 Gravity Add-on 5 Levels 85"H x 50"W x 64"D  | SSI Schaefer USA
Stock # R3GA.855064L5
Dimensions 85"H x 50"W x 64"D
Extra Information Gravity Addon
Levels 5
Price: $1,133.00
R3000 Gravity Add-on 5 Levels 85"H x 50"W x 64"D (SKU# R3GA.855064L5)
  • Bolt-free design for rapid assembly
  • Upright frame fully assembled consisting of uprights, frame braces, and base plates
  • Frame profile with lug pitch of 2"
  • Height adjustable shelves can be adjusted as required in a pitch of 2"
  • Heavy duty up to 5,500Lbs per bay, single-depth or double-depth
  • No floor fixing required assuming that the height/depth ratio of 5:1 is not exceeded
  • Tilted storage levels ensure controlled bin supply and improve visibility and ease of access at the removal side
  • System components made from galvanized sheet steel
  • Suitable for use in ESD areas to protect high value electronic components

Components Included:

1 R3000 Gravity Add-on 85x50x64 - 5L 360.3Lbs.

  • + 03 R3000 Frame Post 85" SKU# R3P.085 6625163 25.2 Lbs.
  • + 03 R3000 Frame Foot Plate SKU# R3FP.M 28291 0.6 Lbs.
  • + 03 R3000 Frame Foot Plate Screws SKU# R3FPS 6001523 0.3 Lbs.
  • + 04 R3000 Frame Bracing 32" deep SKU# R3SB.32 147320 8.8 Lbs.
  • + 16 R3000 Frame Bracing Screws SKU# SBSCREW 6001524 1.6 Lbs.
  • + 05 R3000 Gravity Front Beam 50 SKU# R3GFB50 330350 26.5 Lbs.
  • + 05 R3000 Gravity Back Beam 50 SKU# R3GBB50 330320 33 Lbs.
  • + 10 R3000 Heavy Duty Shelf 50"x32" Galvanized SKU# S3250.XGV2 38282 253 Lbs.
  • + 05 R3000 Gravity Tilted Right Bracket SKU# R3SBR 330920 0.5 Lbs.
  • + 05 R3000 Gravity Tilted Left Bracket SKU# R3SBL 330930 0.5 Lbs.
  • + 10 R3000 Gravity Side Rails 32 SKU# R3GSR32 330910 10 Lbs.
  • + 03 R3000 Top Cap SKU# R3CAP 147130 0.3 Lbs.
