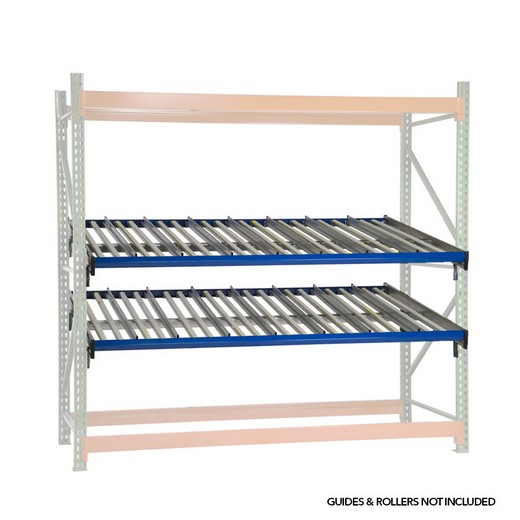

KDR Gravity Flow Rack Level for Pallet Rack 96"W x 96"D

Looking for: KDR Gravity Flow Rack Level for Pallet Rack 96"W x 96"D  | SSI Schaefer USA
Stock # KDRSL.096096
Dimensions 96"W x 96"D
Extra Information Extra Level Pallet Rack. Guide and Rollers are not included.
Price: $422.90
Carton Flow Shelving Levels for Pallet Rack. Extra levels do not include guides and roller tracks (add them optionally). KDR levels are fully adjustable in 0.25" high or 1" angle increments. In addition to that, width between the roller tracks is adjustable in 0.1875" increments, enabling the use of virtually any container. Easily add picking levels to your existing pallet rack installation. KDR Gravity Flow Rack Level for Pallet Rack 96"W x 96"D (SKU# KDRSL.096096)
  • Carton Flow Shelvng Extra Level for Pallet Rack does not include guides or rollers, client needs add extra guides and extra rollers, check size details for additional information
  • KDR levels are fully adjustable in 0.25" high or 1" angle increments for improved ergonomy
  • Rollers & guides adjustable in 0.18" increments across the width to fit any container
  • Designed for fast-moving small to medium-sized parts with high volume
  • Levels can hold up to 1000lbs, for a maximum 3000lbs per complete unit
  • 4 botls is all it takes to built the levels. The rest of the items simply snap and lock in for convenient hassle-free assembly
  • Please check Size Chart for exact product dimensions

    Components Included:

  • 4 M8X16T Bolt SKU#: BOLT.M8x16T 2010220 0.07Lbs.
  • 4 KDR K-AK1 End Cap SKU#: K.AK1 2009602 0.22Lbs.
  • 4 KDR K-LQ1 Profile Plate Connector SKU#: K.LQ1 2009458 0.4Lbs.
  • 4 KDR K-LV1 Side Profile Plate SKU#: K.LV1 2009460 0.38Lbs.
  • 2 KDR K-SA1 Rear support Clip SKU#: K.SA1 2009462 0.18Lbs.
  • 1 KDR K-QH-2430 Rear Profile SKU#: KQH.2430 408030 12.17Lbs.
  • 5 KDR K-QI-50-2430 Center Profile SKU#: KQI50.2430 426640 83.4Lbs.
  • 1 KDR K-QV-2430 Front Profile SKU#: KQV.2430 421080 21.29Lbs.
  • 2 KDR K-SW-2500 Side Profile SKU#: KSW.2500 400720 33.8Lbs.
  • 2 KDR Rack Level Clip Front SKU#: KVH.PRIF 0.2Lbs.
  • 4 KDR Rack Level Clip Rear SKU#: KVH.PRIR 0.4Lbs.
  • 6 KDR Rack Level Clip Outer SKU#: KVH.PRO 0.6Lbs.
  • 4 R3000 Nut Lock M8 SKU#: NUT.LOCKM8 0.4Lbs.
