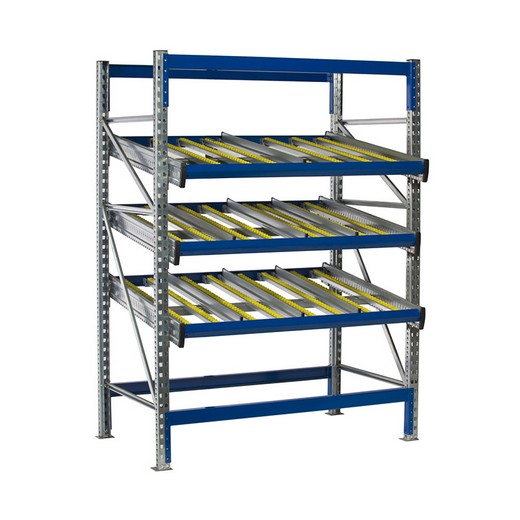

KDR Gravity Flow Rack Shelving Starter Unit. 3 Levels 79"H x 53"W x 61"D

Looking for: KDR Gravity Flow Rack Shelving Starter Unit. 3 Levels 79"H x 53"W x 61"D | SSI Schaefer USA
Stock # KDRS.5361
Dimensions 79"H x 53"W x 61"D
Levels 3
Extra Information Starter
Price: $1,205.00
The versatile live storage shelving system. Secure and stable upright frame combined ith reinforcing cross beams form a "racking frame" to house entire flow bed units. The flow beds can be modified quickly and without screws using adjustable hooks at a module pitch of 6.25mm or 12.5mm in height and inclination and in the horizontal position at a pitch of 25mm. KDR Gravity Flow Rack Shelving Starter Unit. 3 Levels 79"H x 53"W x 61"D (SKU# KDRS.5361)
  • Starter units include 2 frames with anchors, shims and top caps, 3 beams and 3 Gravity Flow Levels. Guides and Rollers qty varies per width, check product details for additional information
  • KDR levels are fully adjustable in 0.25" high or 1" angle increments for improved ergonomy
  • Rollers & guides adjustable in 0.18" increments across the width to fit any container
  • Designed for fast-moving small to medium-sized parts with high volume
  • Levels can hold up to 2,400lbs, for a maximum 5,500lbs per complete unit
  • 4 botls is all it takes to built the levels. The rest of the items simply snap and lock in for convenient hassle-free assembly
  • Please check Size Chart for exact product dimensions

Components Included:

1 KDR Gravity Flow Starter Unit 53x61x79 - 3L 351.86Lbs.

+ 02 KDR Gravity Flow Rack Frame 49x79 SKU# KRP63.1250C 0 96.5408 Lbs.

  • + 12 R3000 Nut Lock M8 SKU# NUT.LOCKM8 1.2 Lbs.
  • + 08 Washer M8 SKU# WASHER.M8 1001949 0.4 Lbs.
  • + 04 Bolt M8x20 SKU# BOLT.M8x20 25160 0.2 Lbs.
  • + 08 R3000 Bolt M8x45 SKU# BOLT.M8x45 2004064 0.8 Lbs.
  • + 02 KDR Frame Diagonal C30/15/8/1.5 x 1773 SKU# KDR.DB1773 6606055 6.2 Lbs.
  • + 02 KDR Footplate SKU# KDR.FP 6620900 2 Lbs.
  • + 02 KDR Frame Horizontal C30/15/8/1.5 x 1185 SKU# KDR.LB1185 464090 6.4 Lbs.
  • + 04 Spacer DH30 13x2 SKU# KDR.SPACER 6600011 0.0704 Lbs.
  • + 02 KDR Post Top Cap Interior SKU# KDR.TC25X35 472650 0.2 Lbs.
  • + 02 KDR Post Top Cap Exterior SKU# KDR.TC40X60 0 Lbs.
  • + 02 KDR Post P60/65/2 x 1994 SKU# KDR63.POST1994 6606050 30.8 Lbs.

+ 03 KDR Gravity Flow Rack Beam 53" SKU# K.AT1350C 0 36.1242 Lbs.

  • + 02 Bolt M8x20 SKU# BOLT.M8x20 25160 0.1 Lbs.
  • + 01 KDR Gravity Flow Rack Beam 53" SKU# K.AT1350 440810 11.7414 Lbs.
  • + 02 Nut M8 SKU# NUT.M8 25160 0.1 Lbs.
  • + 02 Washer M8 SKU# WASHER.M8 1001949 0.1 Lbs.

+ 03 KDR Gravity Flow Rack Level 53x61 SKU# KDRSL.061053 0 142.1562 Lbs.

  • + 04 M8X16T Bolt SKU# BOLT.M8x16T 2010220 0.0704 Lbs.
  • + 04 KDR K-AK1 End Cap SKU# K.AK1 2009602 0.22 Lbs.
  • + 04 KDR K-LQ1 Profile Plate Connector SKU# K.LQ1 2009458 0.396 Lbs.
  • + 04 KDR K-LV1 Side Profile Plate SKU# K.LV1 2009460 0.3784 Lbs.
  • + 02 KDR K-SA1 Rear support Clip SKU# K.SA1 2009462 0.1848 Lbs.
  • + 04 KDR K-VH1 Level Support Clip SKU# K.VH1 2009461 0.2024 Lbs.
  • + 01 KDR K-QH-1350 Rear Profile SKU# KQH.1350 406950 6.655 Lbs.
  • + 01 KDR K-QI-40-1350 Center Profile SKU# KQI40.1350 422950 6.644 Lbs.
  • + 01 KDR K-QV-1350 Front Profile SKU# KQV.1350 420000 11.6468 Lbs.
  • + 02 KDR K-SW-1525 Side Profile SKU# KSW.1525 400330 20.5876 Lbs.
  • + 04 R3000 Nut Lock M8 SKU# NUT.LOCKM8 0.4 Lbs.

+ 18 KDR Gravity Flow Rack Roller 61 SKU# KR28S.1470C 0 55.5588 Lbs.

  • + 01 KDR Roller 61 SKU# KR28S.1470 434240 2.9722 Lbs.
  • + 02 KDR Roller Clip SKU# KDR.RKCLIP 2009603 0.1144 Lbs.

+ 06 KDR Gravity Flow Rack Guide 61 SKU# KTL.1455C 0 21.0804 Lbs.

  • + 01 KDR Gravity Flow Rack Guide 61 SKU# KTL.1455 446470 3.399 Lbs.
  • + 02 KDR Roller Clip SKU# KDR.RKCLIP 2009603 0.1144 Lbs.
  • + 04 R3000 Floor Anchor SKU# ANCHOR.KBTZ38X3 145710 0.4 Lbs.
