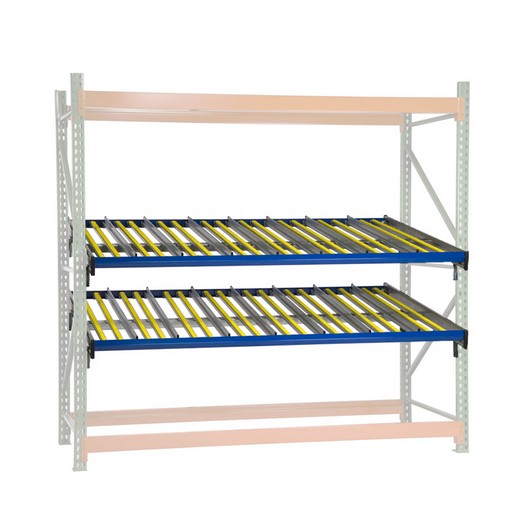

Add a new level to your Gravity Flow Rack. Gravity flow rack extra levels include 5 guides and 12 roller tracks. KDR levels are fully adjustable in 0.25" high or 1" angle increments. In addition to that, width between the roller tracks is adjustable in 0.1875" increments, enabling the use of virtually any container. KDR Systems are fully compatible with Schafer Bins & Containers. Easy to assemble. KDR Gravity Flow Extra Level - 5 Guides, 12 rollers 96"W x 96"D (SKU# KDRPL.096096)
- Carton Flow Shelvng Extra Level for Pallet Rack includes 5 guides and 12 rollers tracks, check size details for additional information
- KDR levels are fully adjustable in 0.25" high or 1" angle increments for improved ergonomy
- Rollers & guides adjustable in 0.18" increments across the width to fit any container
- Designed for fast-moving small to medium-sized parts with high volume
- Levels can hold up to 1000lbs, for a maximum 3000lbs per complete unit
- 4 botls is all it takes to built the levels. The rest of the items simply snap and lock in for convenient hassle-free assembly
- Please check Size Chart for exact product dimensions
Components Included:
1 KDR Gravity Flow Level 96x96 - 5 Guides, 12 rollers 243.17Lbs.
+ 01 KDR Gravity Flow Rack Level 96x96 SKU# KDRSL.096096 0 153.5144 Lbs.
- + 04 M8X16T Bolt SKU# BOLT.M8x16T 2010220 0.0704 Lbs.
- + 04 KDR K-AK1 End Cap SKU# K.AK1 2009602 0.22 Lbs.
- + 04 KDR K-LQ1 Profile Plate Connector SKU# K.LQ1 2009458 0.396 Lbs.
- + 04 KDR K-LV1 Side Profile Plate SKU# K.LV1 2009460 0.3784 Lbs.
- + 02 KDR K-SA1 Rear support Clip SKU# K.SA1 2009462 0.1848 Lbs.
- + 01 KDR K-QH-2430 Rear Profile SKU# KQH.2430 408030 12.1682 Lbs.
- + 05 KDR K-QI-50-2430 Center Profile SKU# KQI50.2430 426640 83.402 Lbs.
- + 01 KDR K-QV-2430 Front Profile SKU# KQV.2430 421080 21.2938 Lbs.
- + 02 KDR K-SW-2500 Side Profile SKU# KSW.2500 400720 33.8008 Lbs.
- + 02 KDR Rack Level Clip Front SKU# KVH.PRIF 0.2 Lbs.
- + 04 KDR Rack Level Clip Rear SKU# KVH.PRIR 0.4 Lbs.
- + 06 KDR Rack Level Clip Outer SKU# KVH.PRO 0.6 Lbs.
- + 04 R3000 Nut Lock M8 SKU# NUT.LOCKM8 0.4 Lbs.
+ 12 KDR Gravity Flow Rack Roller 96 SKU# KR28S.2445C 0 60.6936 Lbs.
- + 01 KDR Roller 96 SKU# KR28S.2445 434630 4.9434 Lbs.
- + 02 KDR Roller Clip SKU# KDR.RKCLIP 2009603 0.1144 Lbs.
+ 05 KDR Gravity Flow Rack Guide 96 SKU# KTL.2430C 0 28.963 Lbs.
- + 01 KDR Gravity Flow Rack Guide 96 SKU# KTL.2430 447250 5.6782 Lbs.
- + 02 KDR Roller Clip SKU# KDR.RKCLIP 2009603 0.1144 Lbs.
