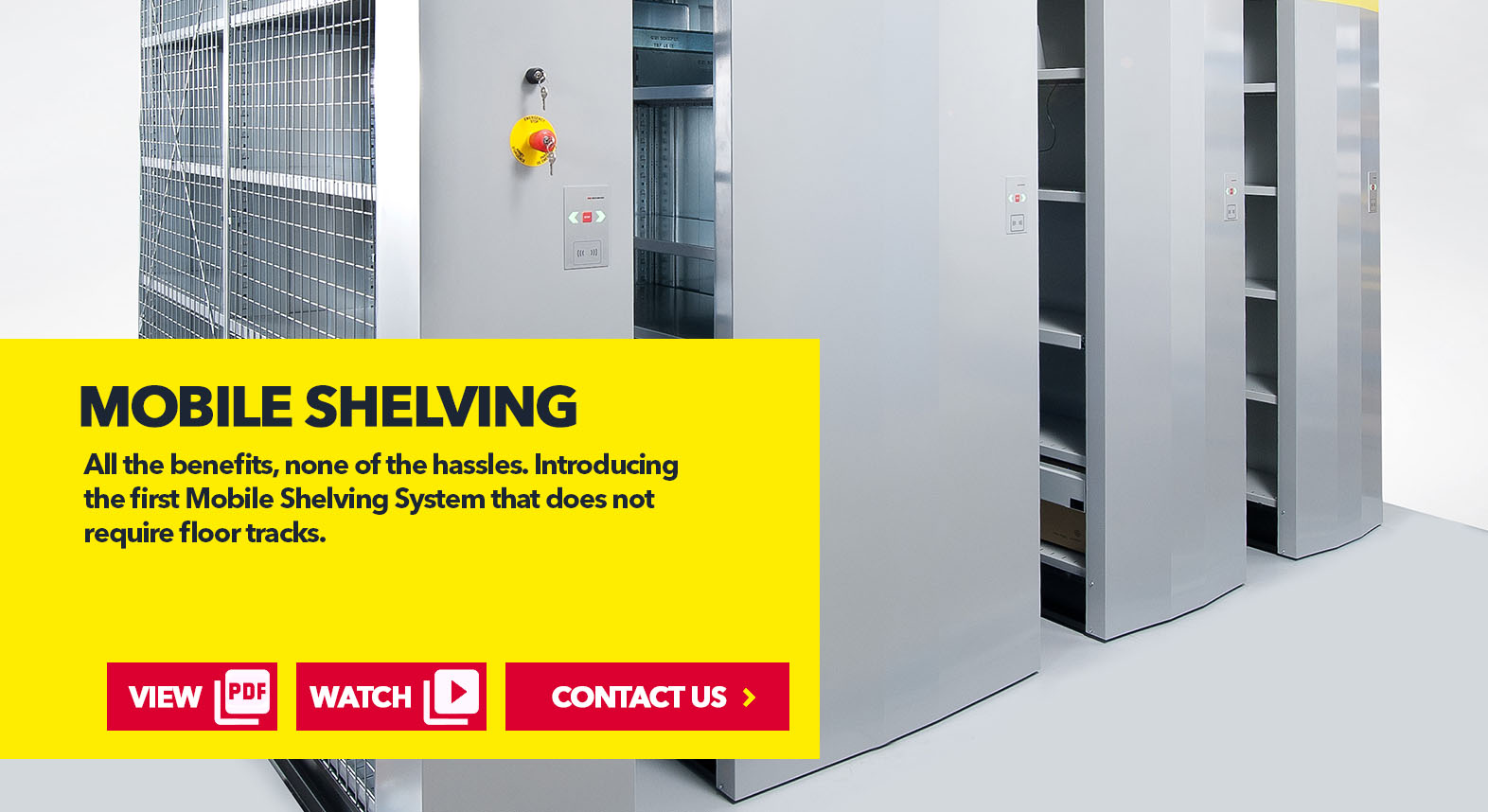

Mobile Trackless Shelving Systems by SSI Schaefer USA. Shop Now. Contact Us. www.chaefershelving.com Download Document PDF with information about mobile Trackless shelving systems. Watch the video how works mobile Trackless shelving systems. Contact us for estimate Mobile Trackless Shelving Systems

What is Mobile Shelving System?

Mobile Shelving is a conventional shelving system mounted on carriages which moves to maximize the storage capacity. Aisles can be accessed via manual or remote RFID control. The reduction in the number of aisles achieved by this system provides a high degree of both operational and cost benefits.

Mobile Trackless Shelving Systems. Higher Capacity, Reduce Space, Support, Flexibility. SSI Schaefer. www.schaefershelving.com
Mobile Trackless Shelving System. Made in USA. SSI Schaefer. www.schaefershelving.com

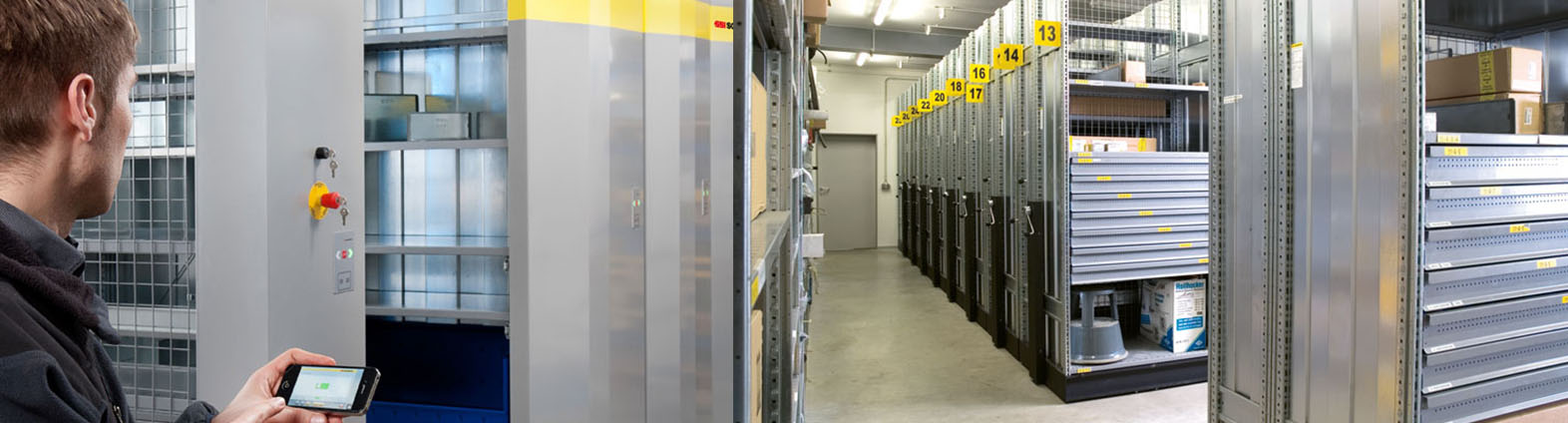

Warehouses with Mobile Trackless Shelving Systems. Quality Mobile Trackless Shelving. Made in USA. SSI Schaefer. www.schaefershelving.com

SSI SCHAEFER Mobile Shelving vs the competition

Trackless Solution

The carriages are moved manually with the aid of a crank and a gear ratio adjusted to the loads carried. Drive is provided directly by the castors on the floor.
They are guided at the rear by a small dowel-shaped profile. This system requires no ramps or infill floor, saves on assembly time, is cost-effective, and can be easily relocated when moved.

RFID Drive

In addition to the standard crank drive and electric drive options, SSI SCHAEFER also offers an RFID based solution, where the system is released at the scan of a badge.
This solution includes safety light barriers and emergency stops. It also prevents unauthorized operation of the system.

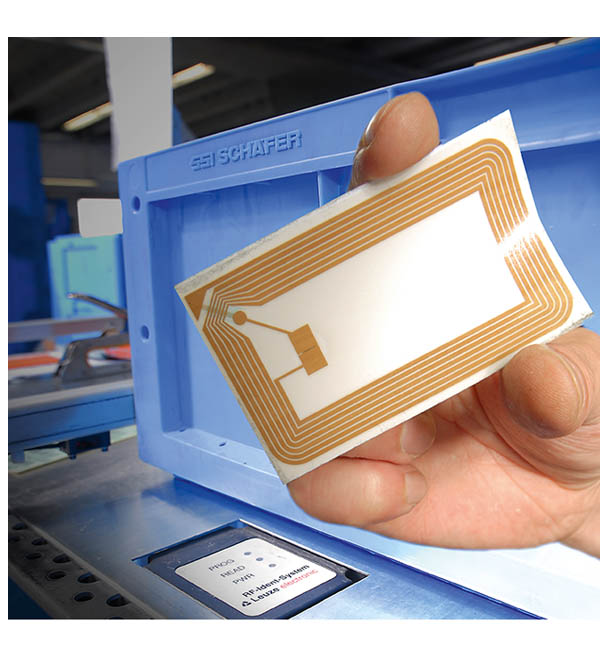

Ask us! Mobile Trackless Shelving Systems. RFID Codes. SSI Schaefer.

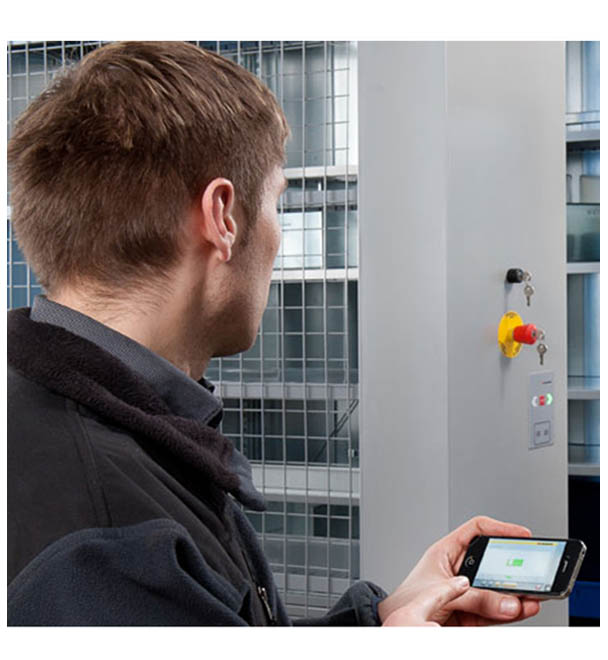

Ask us! Mobile Trackless Shelving Systems. Mobile Device Control. SSI Schaefer.

24/365 Support

On-Call Engineers for Remote Support 24 hours, 365 days, Worldwide. With customer-specific service and maintenance models as well as innovative spare parts concepts, the service team ensures minimal standstill times, maximum operational reliability and a high degree of customer satisfaction. From 3 different modules, select the service and maintenance concept that best meets your specific needs. Range of services:

  • Regular Maintenance
  • Safety Inspections
  • Remote Access and Support
  • On-Site Access and Support
  • Racking inspection/safety checks
  • Spare parts management
  • Modernization/repair/retrofitting
  • Documentation, Training/certification

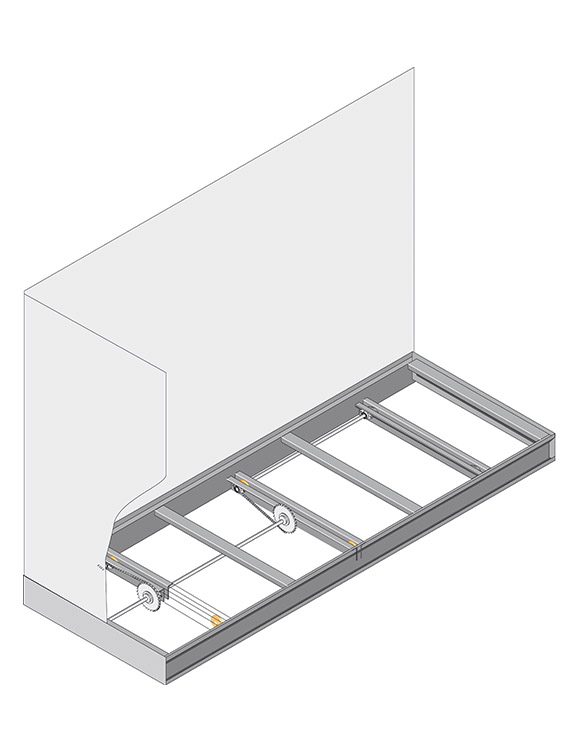

Carriages

Twelve-wheel travelling mechanism. Advantage for supporting structure planning. Loads affecting the floor are reduced due to the number of wheels.

Load Capacity. Up to 26,400 lbs. (1,340 lbs. per foot of carriage length).


Shelving

  • High quality construction.
  • Improved stability due to special design
  • Up to 10,000 lbs. frame load capacity
  • Galvanized or painted beam finish.

Drives

Crank drive. The bases are moved manually with the aid of a crank and a gear ratio adjusted to the loads carried.

Electric drive. The mobile shelving system the base is moved by a single motor drive which utilizes a gearwheel on a chain set into a floor-mounted rail. This model is primarily used with high compartment loads. Safety devices guarantee hazard-free operations in line with relevant guidelines and regulations relating to workplace safety.

RFID drive. The system is released at the scan of a badge. This solution includes safety light barriers and emergency stops. It also prevents unauthorized operation of the system.

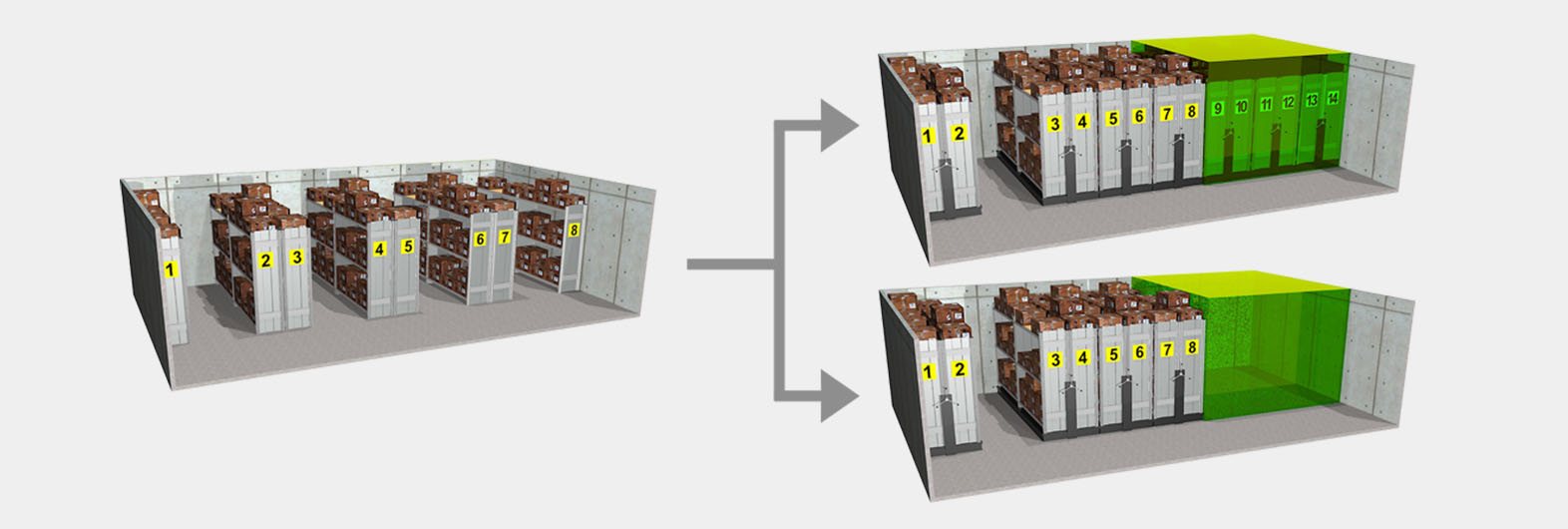

Graphic How works Mobile Trackless Shelving Systems. Quality Mobile Trackless Shelving. Made in USA. SSI Schaefer. www.schaefershelving.com
Customer Testimonials. SSI Schaefer. www.schaefershelving.com. Made in USA. SSI Schaefer. www.schaefershelving.com

ANY QUESTIONS?
